Uninterruptible Power Supply (UPS)

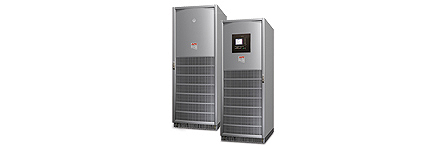

MGE Galaxy 5000

State-of-the-art three phase power protection designed to meet a wide range of requirements from medium data centers to industrial and facilities applications


  • Designed for Maximum Configuration MGE Galaxy 5000 offers technology that increases performance and reliability. Online technology fully isolates and protects against all power quality disturbances. The upstream harmonics management allows a generator friendly installation and flexible configurations for even the most demanding designs. The MGE Galaxy 5000 offers features such as paralleling capability for both capacity and redundancy, full front access, included start up for ease of serviceability, user friendly graphical display with multiple language options, and SNMP with network based power management options. All these features make the Galaxy 5000 one of the easiest UPS's in its class to manage and maintain.

    Products   Part Number

    400V 3PH, 480V 3PH, 600V 3PH Output / 400V 3PH, 480V 3PH, 600V 3PH Input
    MGE Galaxy 5000 40 kVA ifx G5TUPS40
    MGE Galaxy 5000 60 kVA ifx G5TUPS60
    MGE Galaxy 5000 80 kVA ifx G5TUPS80
    MGE Galaxy 5000 100 kVA ifx G5TUPS100

    Products Part Number

    480V 3PH, 600V 3PH Output / 480V 3PH, 600V 3PH Input
    MGE Galaxy 5000 50 kVA G5TUPS50
    MGE Galaxy 5000 130kVA G5TUPS130

    UL 924 approved UPS systems with batteries
    Products   Part Number

    480V 3PH, 600V 3PH Output / 480V 3PH, 600V 3PH Input
    G5k 40 kVA UPS 480V ADJ BATT UL924 BACKUP 90 MIN SUG540A90UL
    G5K 40 kVA UPS 480V STAND ALONE BATT UL924 BACKUP 90MIN ifx SUG540S90UL
    G5K 50 kVA 480V ADJ BATT UL924 BACKUP 90 MIN ifx SUG550A90UL
    G5K 50 kVA 480V STAND ALONE BATT UL924 BACKUP 90 MIN ifx SUG550S90UL
    G5k 80 kVA 480V UPS with Adj Batt UL924 BACKUP 90 Min ifx SUG580A90UL
    G5K 80 KVA 480V UPS with Stand Alone Batt UL924 BACKUP 90 Min ifx SUG580S90UL
    G5K 100 KVA 480V UPS With ADJ Batt UL924 BACKUP 90 MIN ifx SUG5100A90UL
    G5K 100 KVA 480V UPS with SA Batt UL924 BACKUP 90 Min ifx SUG5100S90UL

Call 800-444-1938 for a free engineering consultation.
